SilkETW - Flexible C# Wrapper For ETW (Event Tracing for Windows)


SilkETW is a flexible C# wrapper for ETW, it is meant to abstract away the complexities of ETW and give people a simple interface to perform research and introspection. While SilkETW has obvious defensive (and offensive) applications it is primarily a research tool in it's current state.
For easy consumption, output data is serialized to JSON. The JSON data can either be analyzed locally using PowerShell or shipped off to 3rd party infrastructure such as Elasticsearch.

Implementation Details

Libraries
SilkETW is buit on .Net v4.5 and uses a number of 3rd party libraries, as shown below. Please see LICENSE-3RD-PARTY for further details.
ModuleId                                 Version LicenseUrl
--------                                 ------- ----------
McMaster.Extensions.CommandLineUtils     2.3.2   https://licenses.nuget.org/Apache-2.0
Microsoft.Diagnostics.Tracing.TraceEvent 2.0.36  https://github.com/Microsoft/perfview/blob/master/LICENSE.TXT
Newtonsoft.Json                          12.0.1  https://licenses.nuget.org/MIT
System.ValueTuple                        4.4.0   https://github.com/dotnet/corefx/blob/master/LICENSE.TXT
YaraSharp                                1.3.1   https://github.com/stellarbear/YaraSharp/blob/master/LICENSE

Command Line Options

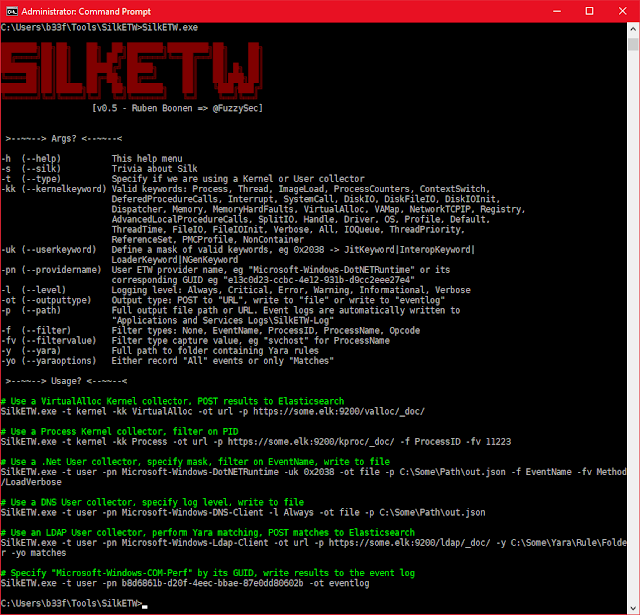

Command line usage is fairly straight forward and user input is validated in the execution prologue. See the image below for further details.


JSON Output Structure
The JSON output, prior to serialization, is formatted according to the following C# struct.
public struct EventRecordStruct
{
    public Guid ProviderGuid;
    public List<String> YaraMatch;
    public string ProviderName;
    public string EventName;
    public TraceEventOpcode Opcode;
    public string OpcodeName;
    public DateTime TimeStamp;
    public int ThreadID;
    public int ProcessID;
    public string ProcessName;
    public int PointerSize;
    public int EventDataLength;
    public Hashtable XmlEventData;
}
Note that, depending on the provider and the event type, you will have variable data in the XmlEventData hash table. Sample JSON output can be seen below for "Microsoft-Windows-Kernel-Process" -> "ThreadStop/Stop".
{
   "ProviderGuid":"22fb2cd6-0e7b-422b-a0c7-2fad1fd0e716",
   "YaraMatch":[

   ],
   "ProviderName":"Microsoft-Windows-Kernel-Process",
   "EventName":"ThreadStop/Stop",
   "Opcode":2,
   "OpcodeName":"Stop",
   "TimeStamp":"2019-03-03T17:58:14.2862348+00:00",
   "ThreadID":11996,
   "ProcessID":8416,
   "ProcessName":"",
   "PointerSize":8,
   "EventDataLength":76,
   "XmlEventData":{
      "FormattedMessage":"Thread 11,996 (in Process 8,416) stopped. ",
      "StartAddr":"0x7fffe299a110",
      "ThreadID":"11,996",
      "UserStackLimit":"0x3d632000",
      "StackLimit":"0xfffff38632d39000",
      "MSec":"560.5709",
      "TebBase":"0x91c000",
      "CycleTime":"4,266,270",
      "ProcessID":"8,416",
      "PID":"8416",
      "StackBase":"0xfffff38632d40000",
      "SubProcessTag":"0",
      "TID":"11996",
      "ProviderName":"Microsoft-Windows-Kern   el-Process",
      "PName":"",
      "UserStackBase":"0x3d640000",
      "EventName":"ThreadStop/Stop",
      "Win32StartAddr":"0x7fffe299a110"
   }
}

Usage

Filter data in PowerShell
You can import JSON output from SilkETW in PowerShell using the following simple function.
function Get-SilkData {
 param($Path)
 $JSONObject = @()
 Get-Content $Path | ForEach-Object {
  $JSONObject += $_ | ConvertFrom-Json
 }
 $JSONObject
}
In the example below we will collect process event data from the Kernel provider and use image loads to identify Mimikatz execution. We can collect the required data with the following command.
SilkETW.exe -t kernel -kk ImageLoad -ot file -p C:\Users\b33f\Desktop\mimikatz.json

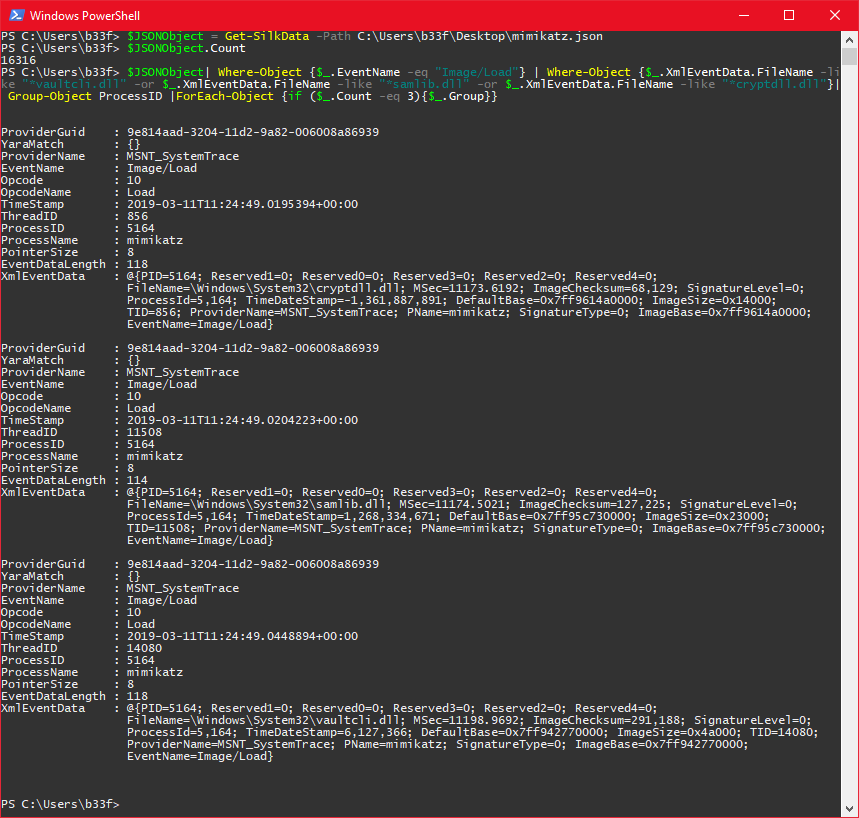

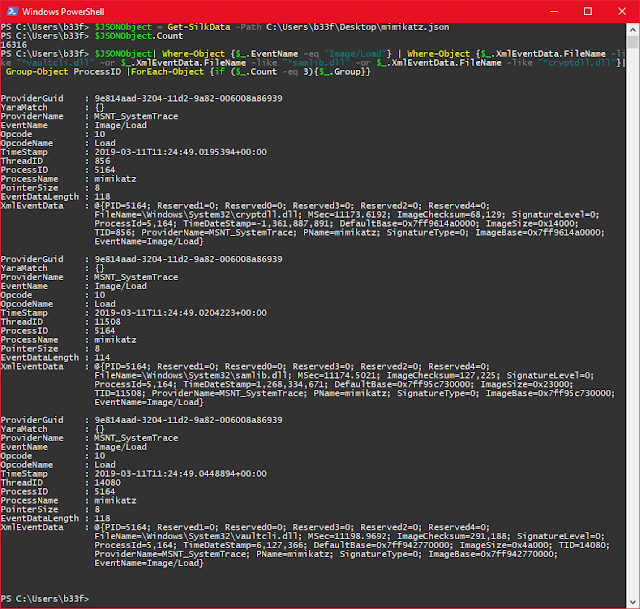

With data in hand it is easy to sort, grep and filter for the properties we are interested in.


Yara
SilkETW includes Yara functionality to filter or tag event data. Again, this has obvious defensive capabilities but it can just as easily be used to augment your ETW research.
In this example we will use the following Yara rule to detect Seatbelt execution in memory through Cobalt Strike's execute-assembly.
rule Seatbelt_GetTokenInformation
{
 strings:
  $s1 = "ManagedInteropMethodName=GetTokenInformation" ascii wide nocase
  $s2 = "TOKEN_INFORMATION_CLASS" ascii wide nocase
  $s3 = /bool\(native int,valuetype \w+\.\w+\/\w+,native int,int32,int32&/
  $s4 = "locals (int32,int64,int64,int64,int64,int32& pinned,bool,int32)" ascii wide nocase

 condition:
  all of ($s*)
}
We can start collecting .Net ETW data with the following command. The "-yo" option here indicates that we should only write Yara matches to disk!
SilkETW.exe -t user -pn Microsoft-Windows-DotNETRuntime -uk 0x2038 -l verbose -y C:\Users\b33f\Desktop\yara -yo matches -ot file -p C:\Users\b33f\Desktop\yara.json
We can see at runtime that our Yara rule was hit.


Note also that we are only capturing a subset of the "Microsoft-Windows-DotNETRuntime" events (0x2038), specifically: JitKeyword, InteropKeyword, LoaderKeyword and NGenKeyword.

Changelog
For details on version specific changes, please refer to the Changelog.
